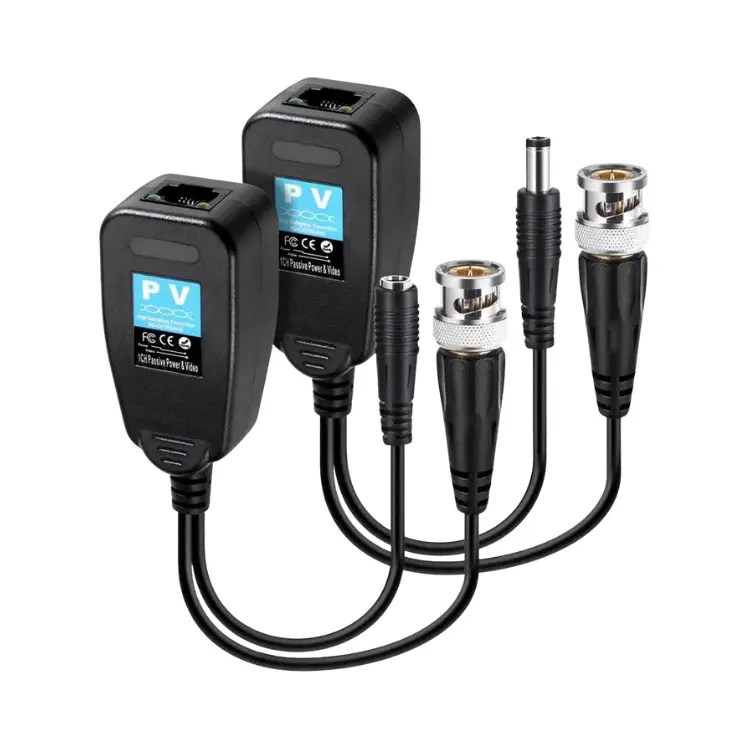

VB-038P HD Passive Video Balun – High-Performance CCTV Video & Power Transmission

The VB-038P HD Passive Video Balun is a high-performance device designed for reliable video and low-voltage power transmission over UTP CAT5 cables. It is ideal for CCTV systems and supports all HD-CVI, HD-TVI, and AHD cameras, ensuring seamless integration with DVRs, monitors, and recording devices.

Gold-Plated BNC Connector for Superior Transmission

The VB-038P features gold-plated BNC connectors, providing excellent video transmission quality with minimal signal loss. This design supports long-distance HD video transmission, ensuring clear and stable images for both 720P and 1080P cameras.

Super Extensive Applications

This passive video balun is compatible with a wide range of video devices, including CCTV cameras, DVRs, monitors, and recorders. It allows real-time monochrome or color video transmission over unshielded twisted-pair (UTP) telephone wires, with video and power routed through RJ45 connections.

Easy Installation and LED Indicators

The VB-038P comes with a detailed installation specification for a simple and convenient setup. LED indicators show operating status: green light for working, yellow for not working. Its compact size and combinable design make it perfect for quick installations in residential, commercial, and industrial CCTV systems.

Reliable Interference Rejection

With unparalleled interference rejection and low emissions, this video balun allows video signals to co-exist with telephone, datacom, or low-voltage power circuits in the same cable bundle. Built-in transient suppression ensures stable operation even in challenging environments.

Technical Specifications:

  • Compatible with HD-CVI, HD-TVI, HD-AHD cameras
  • Video transmission distances: 450m for 720P CVI, 250m for 1080P CVI, 250m for TVI, 320m for 720P AHD
  • Video formats: NTSC, PAL, SECAM
  • Frequency response: DC–60MHz
  • Attenuation: 0.5dB typical
  • CMRR (Common Mode Rejection Ratio): 60dB
  • Surge protection: 4KV, ESD: 8KV
  • Impedance: BNC 75Ω, RJ45 100Ω
  • Working temperature: –10°C to 70°C
  • Storage temperature: –30°C to 70°C
  • Humidity: 0–95%
  • Dimensions: 52×28×21mm with 14cm cable
  • Material: ABS Plastic

Buy VB-038P HD Passive Video Balun in Sri Lanka

Get the original VB-038P HD Passive Video Balun for superior video and power transmission in your CCTV system. For purchase or inquiries, contact sales@logicc.lk.

Check out related products like RG59 Coaxial Cable and BNC Jack Connector for CCTV to complete your CCTV installation setup.

Learn more about video baluns at Wikipedia Video Balun.
